Why use Multicheck M?

Operated entirely without a computer, Multicheck M is designed specifically for use in settings where, for some reason or other, equipment cannot be tested in a computer-assisted manner.

Multicheck M is suitable for tests at high pressure, medium pressure and low pressure. It allows you to carry out all of the static and dynamic tests that need to be performed on full-face masks, lung-governed demand valves (LGDV) and SCBAs.

The design of Multicheck M and the arrangement and quality of its pressure gauges and controls make for utmost user-friendliness and a quality of testing that is truly outstanding, especially considering the test bench’s purely mechanical working principle.

Multicheck M does not have a high-pressure regulator. The high pressure needed for equipment testing is feed to the test bench from a compressed-air cylinder via a T-piece.

Thanks to a broad range of optional adapters for masks and LGDVs, Multicheck M can be used for performing tests on a wide variety of equipment with diverse connector/port types from a large number of manufacturers.

With a view to reducing dead space and maximizing accuracy, lung-governed demand valves are connected to a dedicated round-thread equipment port for static tests rather than to a mask.

Masks with five-point head harnesses are strapped onto the inflatable dummy head for testing. The head ensures that they sit properly on a human-like face during testing. In combination with optional accessories, Multicheck M can also be used for testing many makes and models of two-point helmet masks.

Dynamic breathing tests are carried out by means of an artificial lung that can operate at both 25 × 2 l⁠/⁠min and 40 × 2.5 l⁠/⁠min.

Possible tests

• full-face mask –⁠ leak test
• full-face mask –⁠ exhalation-valve opening pressure
• LGDVlung-governed demand valve –⁠ leak test
• LGDVlung-governed demand valve –⁠ opening pressure
• LGDVlung-governed demand valve –⁠ closing pressure
• dynamic tests by means of an artificial lung
  • breathing tests at 25 × 2 l⁠/⁠min
  • breathing tests at 40 × 2.5 l⁠/⁠min

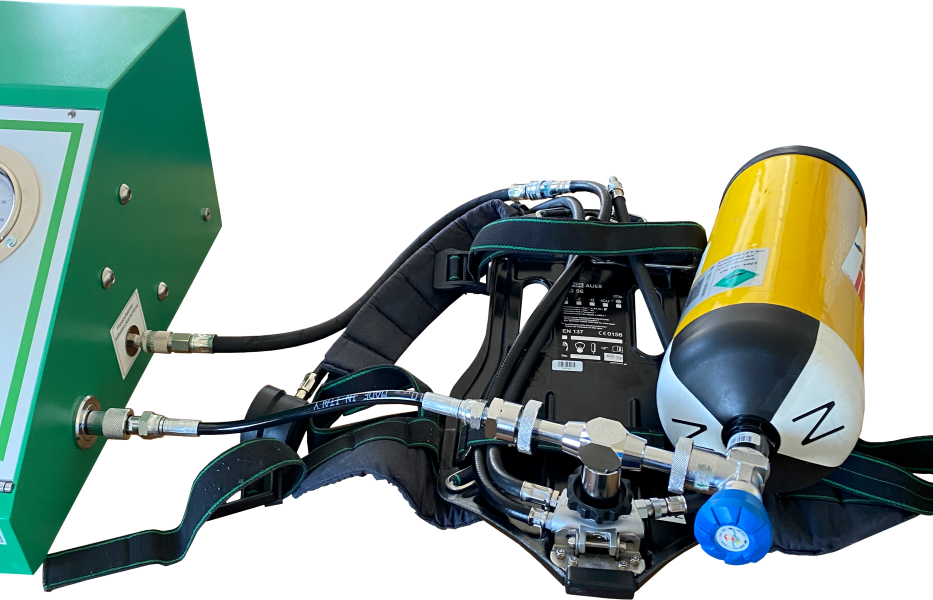

• SCBA –⁠ static medium pressure
• SCBA –⁠ dynamic medium pressure (during breathing tests)
• SCBA –⁠ high-pressure leak tests
• SCBA –⁠ accuracy of pressure-gauge readings
• SCBA –⁠ activation pressure of the low-air alarm
• CPSchemical protective suit –⁠ leak lest optional accessories required
• CPSchemical protective suit –⁠ leak test of the suit valves optional accessories required

Scope of delivery

• Multicheck M
• medium-pressure testing hose
• high-pressure testing hose
• high-pressure T-piece
• round-thread sealing plug
• sealing plug for the medium-pressure hose
• timer
• silicone spray
• protective hood for the dummy head
• power cord
• operator’s manual

Specifications

dimensions (w × d × h):	750 × 550 × 290 mm
weight:	approx. 33 kg
power supply:	230 V, 50 Hz
power consumption:	450 W

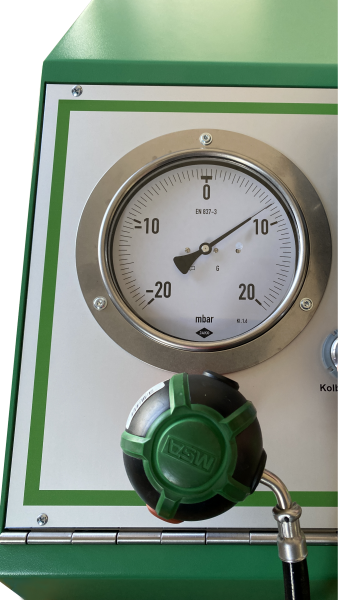

low-pressure gauge:	±20 mbar (cl. 1.6)
medium-pressure gauge:	0 ⁠– 16 bar (cl. 1.0)
high-pressure gauge:	0 ⁠– 400 bar (cl. 0,6)
equipment port:	round thread (EN 148-1)
medium-pressure ports:	Euro coupling/nipple
high-pressure port:	DIN 477
dummy head:	inflatable, with measuring point “eye”
pump:	10 l⁠/⁠min
artificial lung:	25 × 2 l⁠/⁠min and 40 × 2.5 l⁠/⁠min

Optional extras and upgrades

• manual medium-pressure adjustment (up to 15 bar)
• medium-pressure gauge (0 ⁠– 25 bar)
• accessories for testing two-point helmet masks
• accessories for testing chemical protective suits
