Multitest plus
Manual equipment tester for static tests on full-face masks and LGDVs as well as static medium-pressure tests on SCBAs
Why use Multitest plus?
Multitest plus offers the same features and functionality as the Multitest plus Pult equipment tester. With just four controls, it allows you to carry out not only all of the static tests that need to be performed on full-face masks and lung-governed demand vales (LGDV) but also static medium-pressure tests on SCBAs in an efficient and equally convenient manner.
The tester, which is powered by a 1.5-V battery (D cell) (included), has a round-thread equipment port. Thanks to a broad range of optional adapters for masks and LGDVs, it is also possible to test a wide variety of equipment with other connector/port types from a large number of manufacturers.
The required levels of positive and negative pressure as well as the necessary flow rates for opening-pressure tests and closing-pressure tests are supplied by the built-in pump.

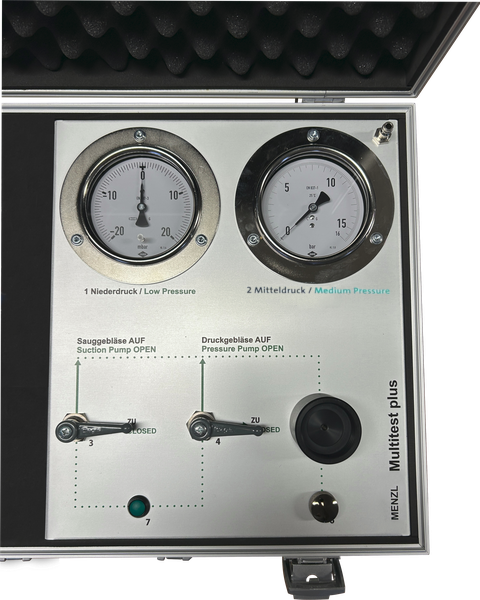

The pressure gauges of Multitest plus are 100 mm in diameter and have finely graduated scales, making it easy to take pressure readings with perfect accuracy. Moreover, the low-pressure gauge is equipped with a zero-offset calibration screw,

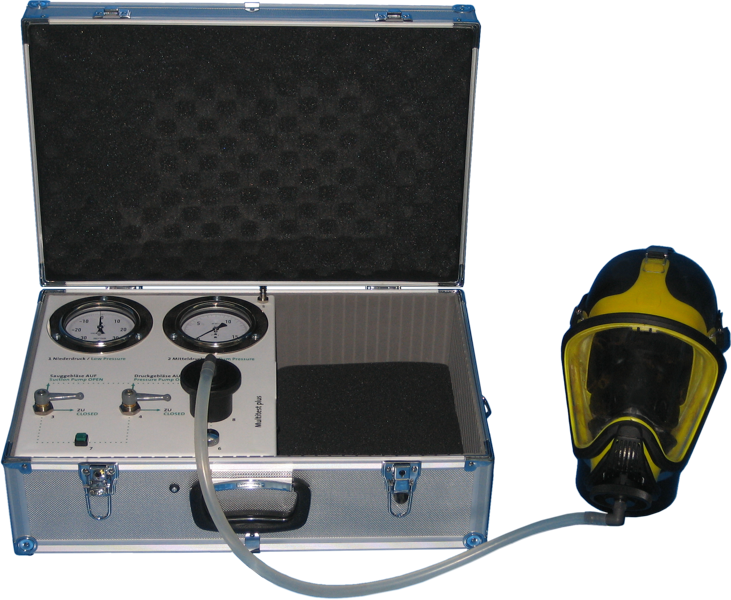

Lung-governed demand valves are connected to the equipment port for testing, while masks with five-point head har-nesses are strapped onto the inflatable dummy head. The head, which comes with a clamp for fastening it to a table or a workbench, ensures that the masks sit properly on a human-like face during testing. In combination with optional accessories, Multitest plus can also be used for testing many makes and models of two-point helmet masks.

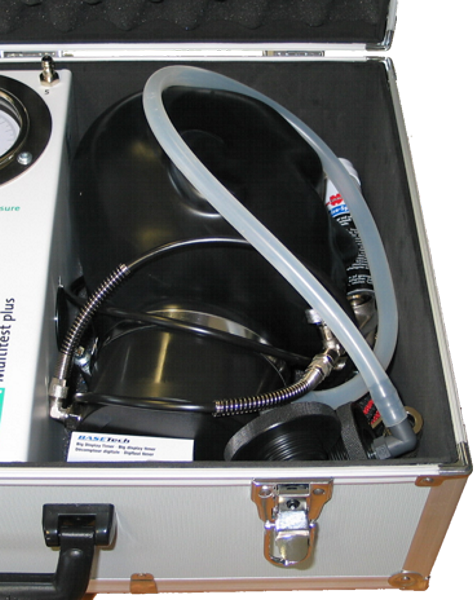

As a result of its case-based design, Multitest plus is very easy to transport and takes up only a minimum of space when you do not use it. With the lid of the case closed, all of the ports and controls are protected from unwanted access. Next to the control panel, there is plenty of room for storing the deflated dummy head, the mask testing hose and any adapters you may have.

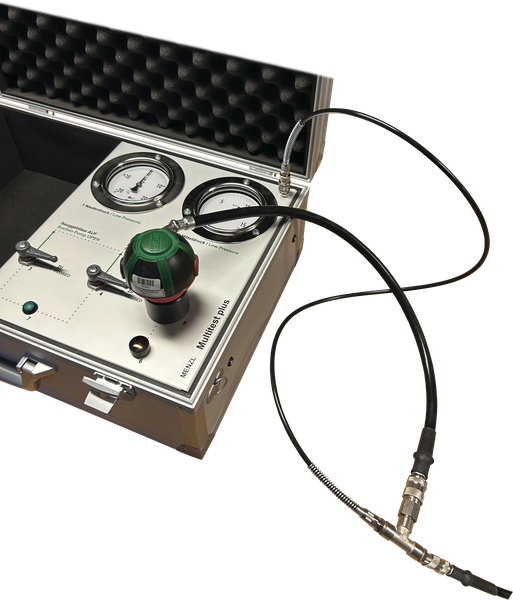

with medium pressure
(sold separately)
Possible tests
- full-face mask – leak test
- full-face mask – exhalation-valve opening pressure
- LGDVlung-governed demand valve – leak test
- LGDVlung-governed demand valve – opening pressure
- LGDVlung-governed demand valve – closing pressure
- SCBA – static medium pressure
- CPSchemical protective suit – leak test optional accessories required
- CPSchemical protective suit – leak test of the suit valves optional accessories required
Scope of delivery
- Multitest plus
- dummy head (incl. filling valve and clamp)
- mask testing hose (round thread)
- sealing plug for the LGDV hose
- medium-pressure testing hose (Euro coupling)
- silicone spray
- timer
- 1.5-V battery (D cell)
- operator’s manual
Specifications
| dimensions (w × d × h): | 550 × 370 × 200 mm |
| weight: | approx. 15 kg |
| power supply: | 1.5-V battery (D cell) |
| low-pressure gauge: | ±20 mbar (accuracy class 1.6) |
| medium-pressure gauge: | 0 – 16 bar (accuracy class 1.0) |
| equipment port: | round thread (EN 148-1) |
| medium-pressure port: | Euro coupling |
Accessories and replacement parts
Mask testing adapters
| Threaded connector M45x3 | 330-050 |
| MSA plug-in connector | 330-048 |
| MSA AutoMaXX | 330-152 |
| Dräger plug-in connector | 330-049 |
| Interspiro plug-in connector | 330-051 |
| Interspiro Click | 330-168 |
| Interspiro Inspire | 330-496 |
| Plug-in connector ESA | 330-178 |
| Racal plug-in connector | 330-564 |
| Round thread | 330-471 |
Accessories for testing two-point helmet masks
| Two-point helmet-mask holder for installation on dummy head — for Dräger/MSA | 330-210 |
| Two-point helmet-mask holder for installation on dummy head — for Interspiro | 330-522 |
| Two-point helmet-mask holder — standard model | 330-233 |
| MSA (Avon/Schuberth) docking adapters for article number 330-233 | 330-127 |
| Interspiro (Heros) docking adapters for article number 330-233 | 330-128 |
LGDV testing adapters
| Threaded connector M45x3 | 330-012 |
| MSA plug-in connector | 330-011 |
| MSA AutoMaXX | 330-149 |
| Dräger plug-in connector | 330-013 |
| Interspiro plug-in connector | 330-014 |
| Interspiro Click | 330-162 |
| Interspiro Inspire | 330-498 |
| Positive-pressure-deactivation adapter for Interspiro Inspire | 330-737 |
| Plug-in connector ESA | 330-175 |
| Racal plug-in connector | 330-129 |
Accessories for testing chemical protective suits (CPS)
| Kit for testing chemical protective suits (Filling hose and testing hose for suit leak tests. Valve tester and expansion tank for valve leak tests.) |
|
|---|---|
| for MSA suits | 330-583 |
| for Dräger suits | 330-584 |
| for Interspiro suits | 330-585 |
| Other accessories for testing chemical protective suits | |
|---|---|
| Testing hose with connection cap for MSA suit valves | 330-039 |
| Filling hose with connection cap for MSA suit valves | 330-041 |
| Connection cap for Dräger suits | on request |
| Connection cap for Koch suits | on request |
| Testing adapter for interspiro suits | 330-294 |
Other accessories
Replacement parts
| Dummy-head rubber part | 900-018 |
| Fastening clamp for dummy-head rubber part | 1900-032 |
| C-clamp with an eyebolt | 3000-003 |
| Push-button valve for dummy-head filling hose | 330-115 |
| Dummy-head filling hose complete with push-button valve | 330-272 |
| Exhalation-valve sealing cap for MSA normal-pressure masks | 264 |
| Sealing nipple for LGDV medium-pressure hose | 330-526 |
| Mask testing hose (round thread – round thread, 10 mm) | 330-200 |
| Gasket for equipment port | 100-063 |
| Countdown timer | 330-474 |
