Why use Multitest 300?

Multitest 300 allows you to efficiently and conveniently carry out all of the static tests that need to be performed on full-face masks and lung-governed demand vales (LGDV). It offers the same functionality as the Multitest ND Pult ME equipment tester but is more comfortable to use as it features electric push-buttons for pressure adjustment rather than the lever valves commonly found on equipment testers.

Multitest 300 also features an electronic low-pressure transducer for computer-assisted use in combination with the feature-packed yet easy-to-use Equipment Management program, which we develop in-house. This guarantees not only the perfect and tamper-proof documentation of the data recorded during testing but also highly accurate test results, given the transducer’s accuracy class of 0.5.

The tester has a round-thread equipment port. Thanks to a broad range of optional adapters for masks and LGDVs, it is also possible to test a wide variety of equipment with other connector/port types from a large number of manufacturers.

The required levels of positive and negative pressure as well as the necessary flow rates for opening-pressure tests and closing-pressure tests are supplied by the built-in pump.

Lung-governed demand valves are connected to the equipment port for testing, while masks with five-point head harnesses are strapped onto the inflatable dummy head. The head, which comes with a clamp for fastening it to a table or a workbench, guarantees that the masks sit properly on a human-like face during testing. In combination with optional accessories, Multitest 300 can also be used for testing many makes and models of two-point helmet masks.

Available models

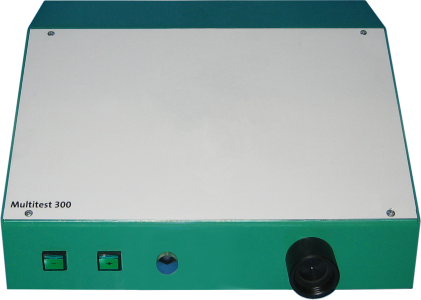

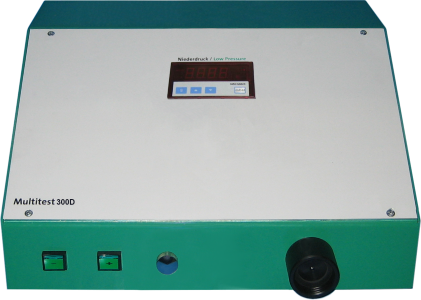

Multitest 300 does not have a pressure indicator, and a computer is required for equipment testing. However, we also offer models with a low-pressure gauge (Multitest 300 ⁠M) or a digital pressure indicator (Multitest 300 ⁠D) that can be used with or without a computer.

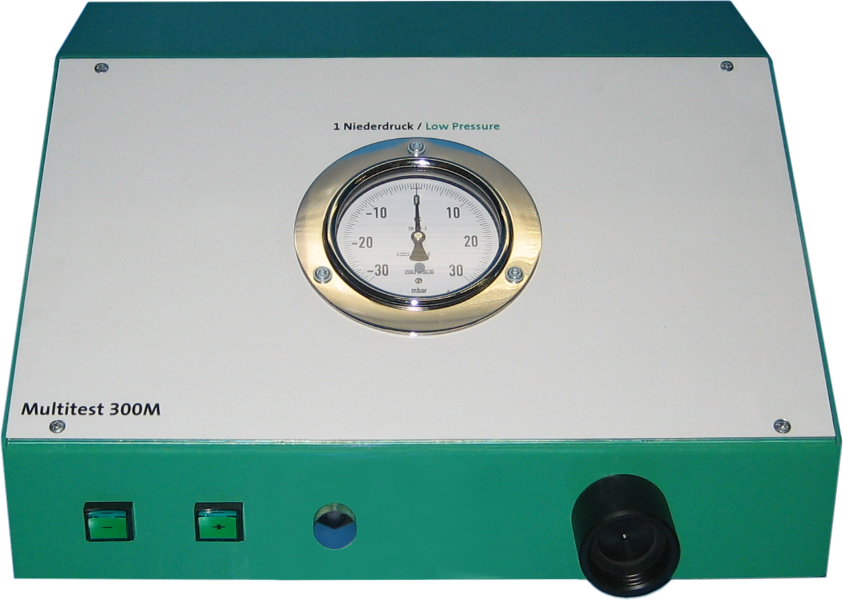

The low-pressure gauge of Multitest 300 ⁠M is 100 mm in diameter and has a finely graduated scale, making it easy to take pressure readings with perfect accuracy. Moreover, there is a zero-offset calibration screw.

Possible tests

• full-face mask –⁠ leak test
• full-face mask –⁠ opening pressure
• LGDVlung-governed demand valve –⁠ leak test
• LGDVlung-governed demand valve –⁠ opening pressure
• LGDVlung-governed demand valve –⁠ closing pressure
• CPSchemical protective suit –⁠ leak test optional accessories required
• CPSchemical protective suit –⁠ leak test of the suit valves optional accessories required

Scope of delivery

• tester of the Multitest 300 product line
• dummy head (incl. filling valve and clamp)
• Equipment Management program (v. 5, excl. cylinder-filling functionality)
• mask testing hose (round thread)
• sealing plug for the LGDV hose
• silicone spray
• power cord and USB cable
• operator’s manual

Specifications

dimensions (w × d × h):	420 × 400 × 220 mm
housing:	texture-painted aluminium
weight:	approx. 9 kg
power supply:	24 V DC
power consumption:	10 W
low-pressure transducer:	±30 mbar (accuracy class 0.5)
equipment port:	round thread (EN 148-1)
Multitest 300 ⁠M
low-pressure gauge:	±30 mbar (accuracy class 1.6)

Article numbers

Multitest 300	330-069
Multitest 300 ⁠M ⁠– like Multitest 300 +⁠ low-pressure gauge	330-061
Multitest 300 ⁠D ⁠– like Multitest 300 +⁠ digital low-pressure indicator	330-070
